25-45° sklon, čierna farba Materiál: plast/olovený plech RAL 9011 (čierna)

Bend angle: 45°
Bend radius: 40 mm
Inner diameter, connection 1: 76 mm
Inner diameter, connection 2: 81 mm
Length: 180 mm
Length of connection 1: 90 mm
Length of connection 2: 90 mm
Outer diameter connection 1: 80 mm
Outer diameter connection 2: 85 mm
Wall thickness: 2 mm
Working length: 135 mm
Working length connection 1: 90 mm
Working length connection 2: 45 mm
Adjustable: No
Bend model: Smooth bend
Colour: Black
Dry (non-condensing): No
Material: Plastic
Material quality: Polypropylene (PP)
Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous): 120 °C
Negative (negative pressure): No
Number of lips: 2
Only suitable for air supply: No
Position of lips: Straight
Positive (overpressure): Yes
Production method: Seamless
RAL-number: 9005
Shape: Bend
Surface protection: Untreated
Surface treatment: Untreated
Wet (condensing): Yes
With clamping strip: No
With lip ring: Yes
With measuring connector: No
With pressure switch: No

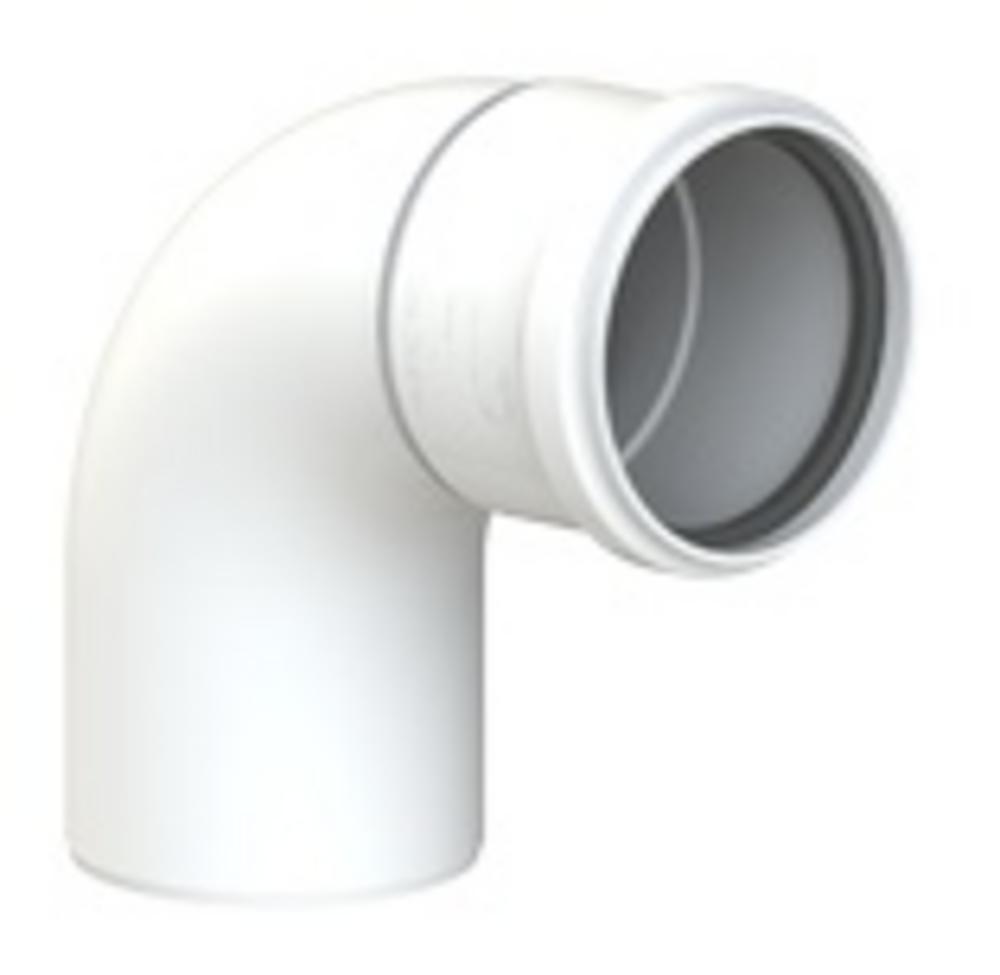

Bend angle: 87°
Bend radius: 50 mm
Inner diameter, connection 1: 96 mm
Inner diameter, connection 2: 101 mm
Length: 275 mm
Length of connection 1: 130 mm
Length of connection 2: 145 mm
Outer diameter connection 1: 100 mm
Outer diameter connection 2: 105 mm
Wall thickness: 2 mm
Working length: 230 mm
Working length connection 1: 130 mm
Working length connection 2: 100 mm
Adjustable: No
Bend model: Smooth bend
Colour: White
Dry (non-condensing): No
Material: Plastic
Material quality: Polypropylene (PP)
Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous): 120 °C
Negative (negative pressure): No
Number of lips: 2
Only suitable for air supply: No
Position of lips: Straight
Positive (overpressure): Yes
Production method: Seamless
RAL-number: 9016
Shape: Inspection piece, bend
Surface protection: Untreated
Surface treatment: Untreated
Wet (condensing): Yes
With clamping strip: No
With lip ring: Yes
With measuring connector: No
With pressure switch: No

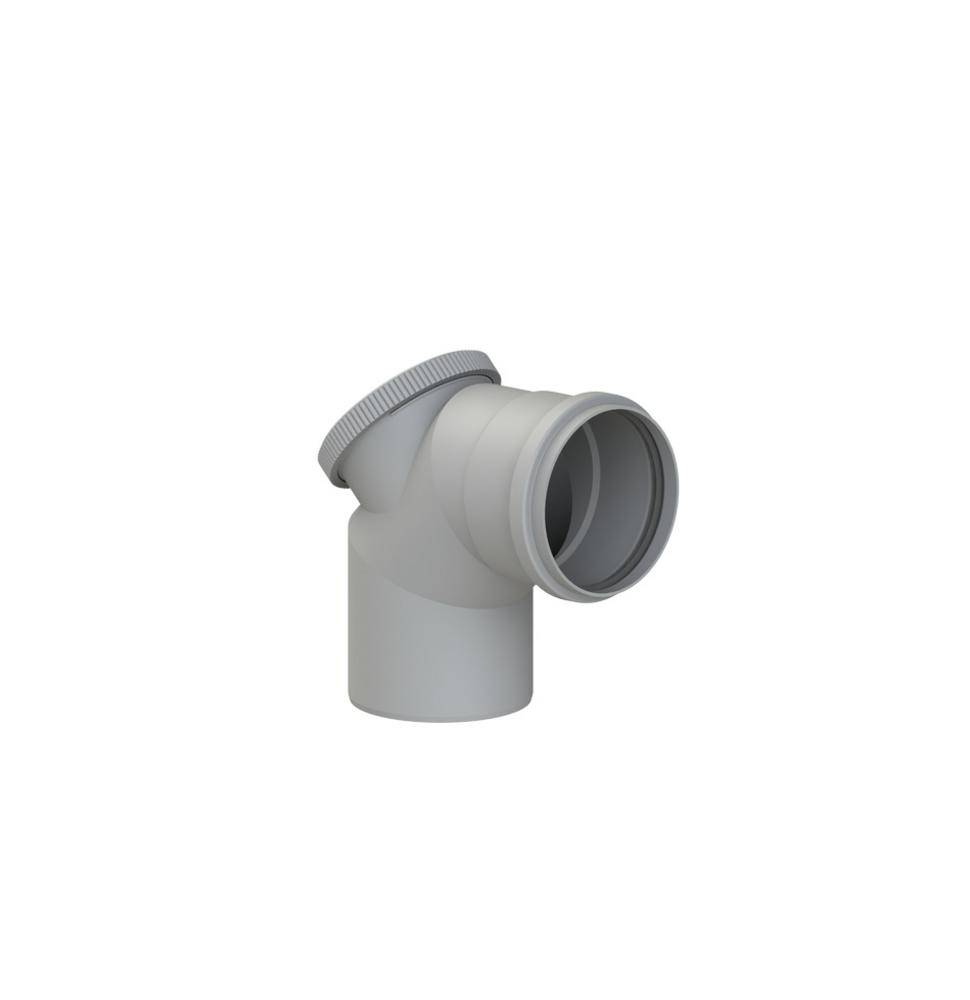

Bend angle: 87°
Bend radius: 50 mm
Inner diameter, connection 1: 96 mm
Inner diameter, connection 2: 101 mm
Length: 275 mm
Length of connection 1: 130 mm
Length of connection 2: 145 mm
Outer diameter connection 1: 100 mm
Outer diameter connection 2: 105 mm
Wall thickness: 2 mm
Working length: 230 mm
Working length connection 1: 130 mm
Working length connection 2: 100 mm
Adjustable: No
Bend model: Smooth bend
Colour: White
Dry (non-condensing): No
Material: Plastic
Material quality: Polypropylene (PP)
Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous): 120 °C
Negative (negative pressure): No
Number of lips: 2
Only suitable for air supply: No
Position of lips: Straight
Positive (overpressure): Yes
Production method: Seamless
RAL-number: 9016
Shape: Inspection piece, bend
Surface protection: Untreated
Surface treatment: Untreated
Wet (condensing): Yes
With clamping strip: No
With lip ring: Yes
With measuring connector: No
With pressure switch: No

Spalinové systémy SERIO s certifikáciou CE sú určené pre nízkoteplotné a kondenzačné kotly s maximálnou teplotou na hrdle spotrebiča 120 °C a umožňujú podtlakovú aj pretlakovú prevádzku. Spojenie jednotlivých častí sa deje pomocou hrdlových spojov so špeciálnym tesniacim krúžkom odolným agresívnemu pôsobeniu kondenzátu, pri niektorých typoch (napr. fasádnych prevedeniach nerez/plast) potom navyše zvernou objímkou. 102 mm výška bez hrdla

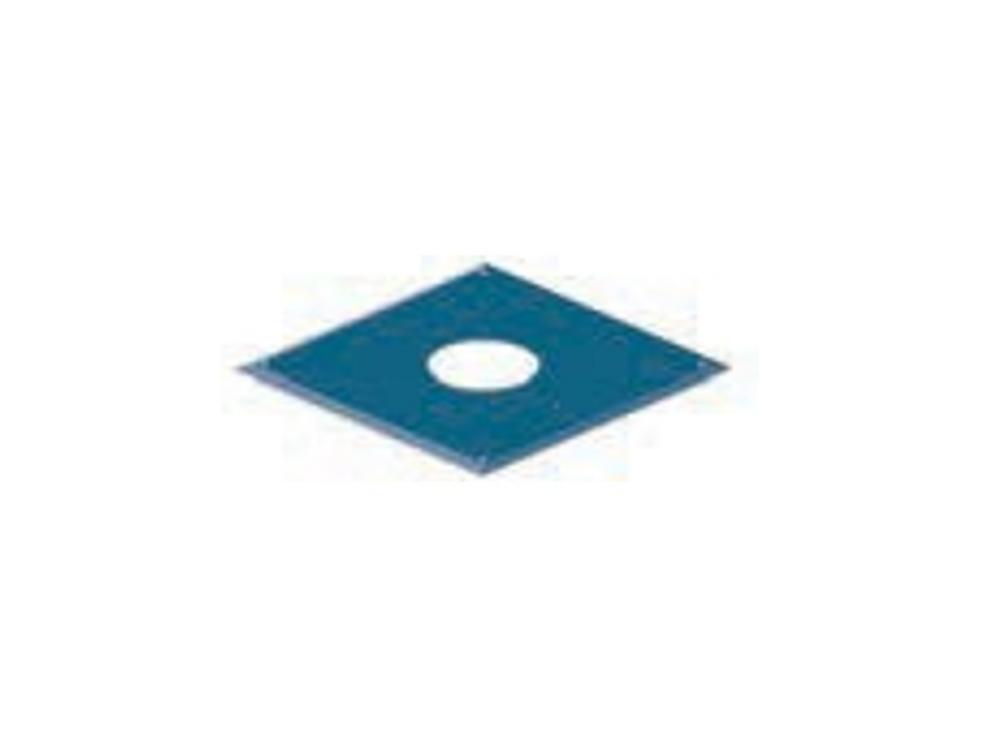

Materiál: plech, RAL9016 15 mm priemer otvoru
